Leaders
We are a leading company in the manufacture of acoustic panels.
Experience
With over 10 years of experience in this niche, we have achieved an impeccable reputation and many satisfied customers.
Quality
We guarantee high quality and reliability in each of our projects, using only the best materials and technologies.
Reliability
We offer reliability and transparency in working with our clients, always striving to achieve mutually beneficial cooperation..
Acoustic panels made of metal
In rooms where it is not possible to mount a suspended acoustic ceiling or use SONASPRAY sprayable coatings, the only possible way to significantly improve acoustic performance is to suspend surround sound–absorbing elements — Soundlux-Design Buffle panels — from the ceiling. The presence of two absorbing surfaces in these panels, located perpendicular to the ceiling plane, determines their high sound absorption characteristics in the entire normalized frequency range. Scope of application: Soundlux-Buffle volumetric panels are used to increase acoustic comfort and reduce noise levels in sports and entertainment facilities, as well as in industrial and technical premises. Composition: Slabs of glass or mineral fiber laminated on the outside with fiberglass, a metal frame and a suspension system. Distinctive features: Installation in rooms with ceilings of any height Spot mounting to the ceiling Possibility of installation after completion of all finishing works Flammability category G1 (non-combustible material) Color Frame: any according to the RAL catalog. Front panels: white, grey, black. Possible special colors to order. Suspension type: On cables or on chains
Acoustic panel -best technological solution

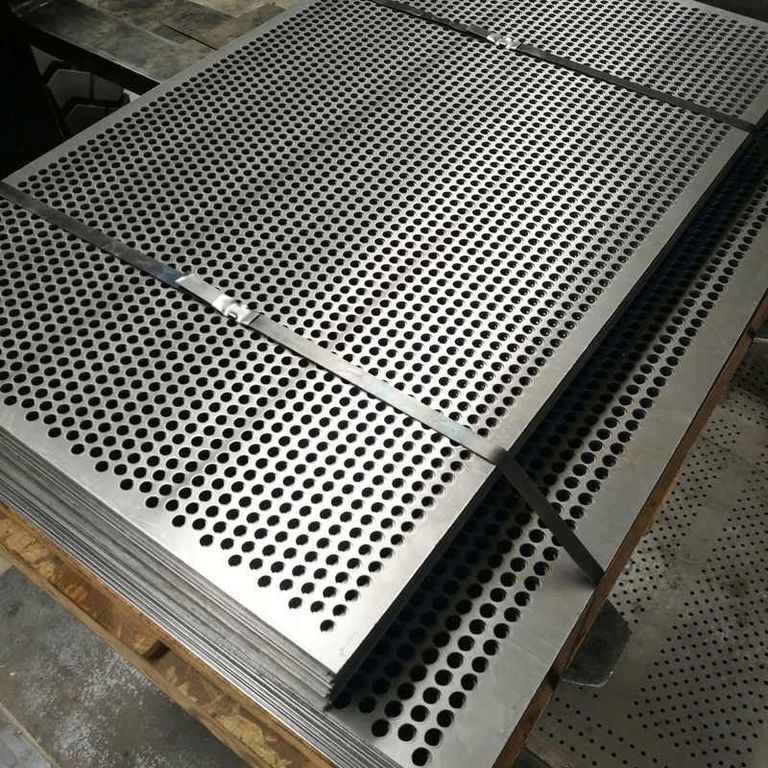

Perforated sheet
A technical material with a wide range of applications, consisting of a metal sheet with punched holes.

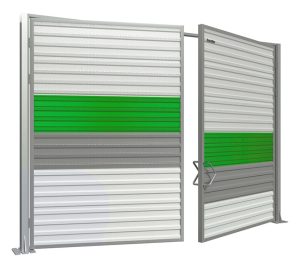

Noise-proof gates
Noise protection gates are used as part of an acoustic screen.
Noise protection doors
To service road communications, it is necessary to have access from both sides of the noise protection screen
Sound-absorbing metal wall panels meet all fire safety requirements. Fire safety class of sound-absorbing panels is NG.
Sound-absorbing panels for interior wall and ceiling cladding. Acoustic decorative wall panels consist of non-combustible materials – a façade metal perforated sheet, a back metal profiled sheet, with fiberglass and sound-absorbing basalt wool between them
The thickness of the steel of the perforated sheet of sound-absorbing panels is from 0.7 mm. The thickness of the steel of the back metal is from 0.5 mm. The thickness of the sound-absorbing basalt wool is from 50 mm.
The length of sound-absorbing facing panels varies from 100 to 4000 mm. The standard width of sound-absorbing panels is 500 mm. If necessary, it is possible to manufacture panels with a smaller width.
The system for fastening wall acoustic panels has 2 options The first is fastening acoustic panels directly to flat walls using mounting plates and guide U-profiles. U-profiles are also used to bypass door and window openings. The U-profile lathing is installed using self-tapping screws or dowel nails. Noise-absorbing panels are manufactured to the required length in factory conditions. Acoustic decorative panels are attached to U-profiles using pull-out rivets or self-tapping screws.
The second option is fastening to the walls using metal lathing. As a lathing, we use posts made of a profile pipe with a supporting glazing bead on both sides. This allows you to sheathe uneven walls. Also, the air gap between the wall and the sound-absorbing panels has a positive effect on the soundproofing properties of the noise-protective cladding. The panels, in turn, are pressed with a strip to the supporting glazing beads of the posts, which ensures the strength and reliability of the entire structure.
